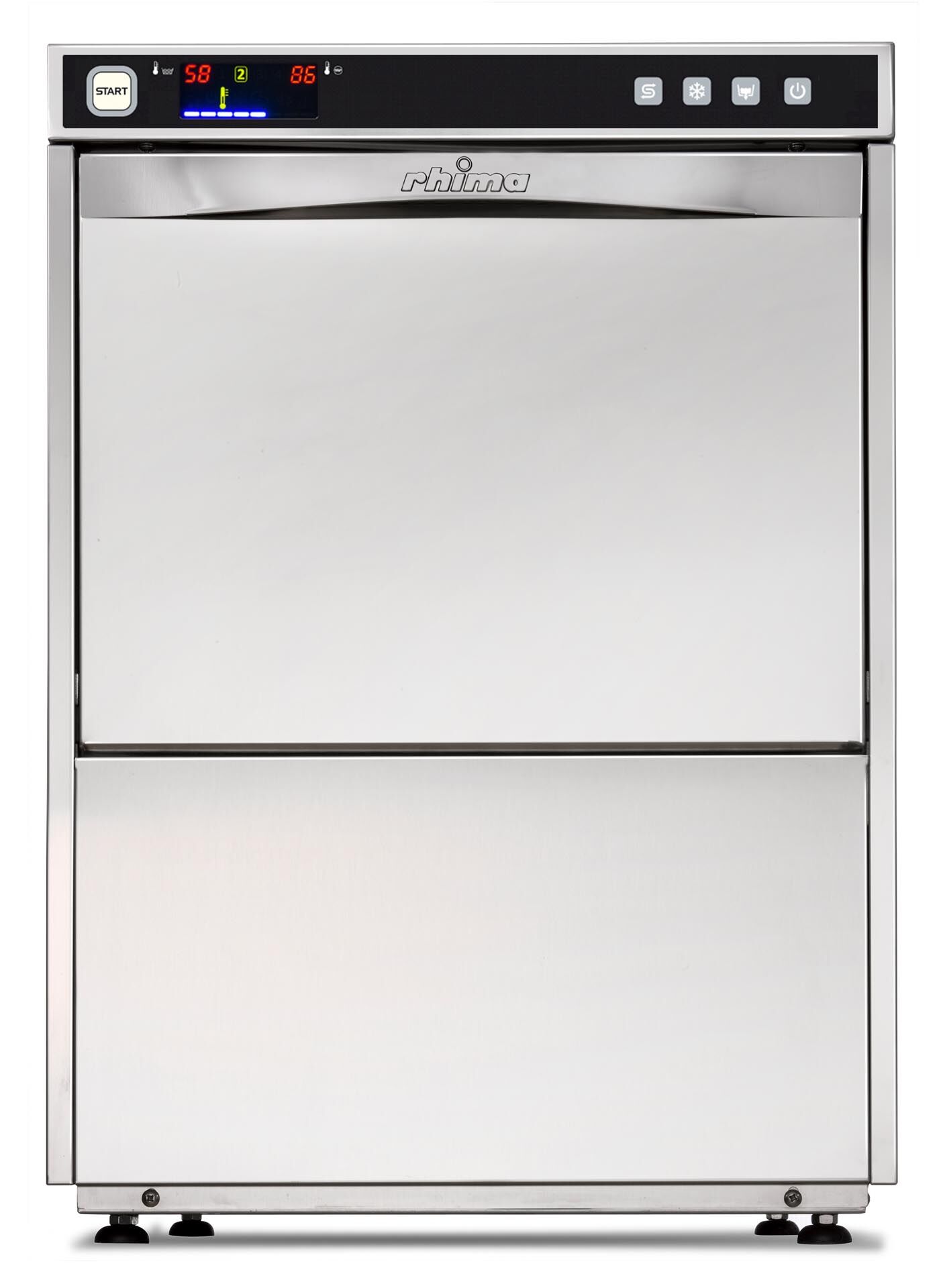

RM-50 Underbench Marine Dishwasher
Description
The RM-50 underbench dishwasher is built with some important features to be able to withstand life on the water.
At Rhima we understand that there are time constraints on vessels in port. Rhima can organise repair, maintenance and installation during the short docking time frames.
Benefits

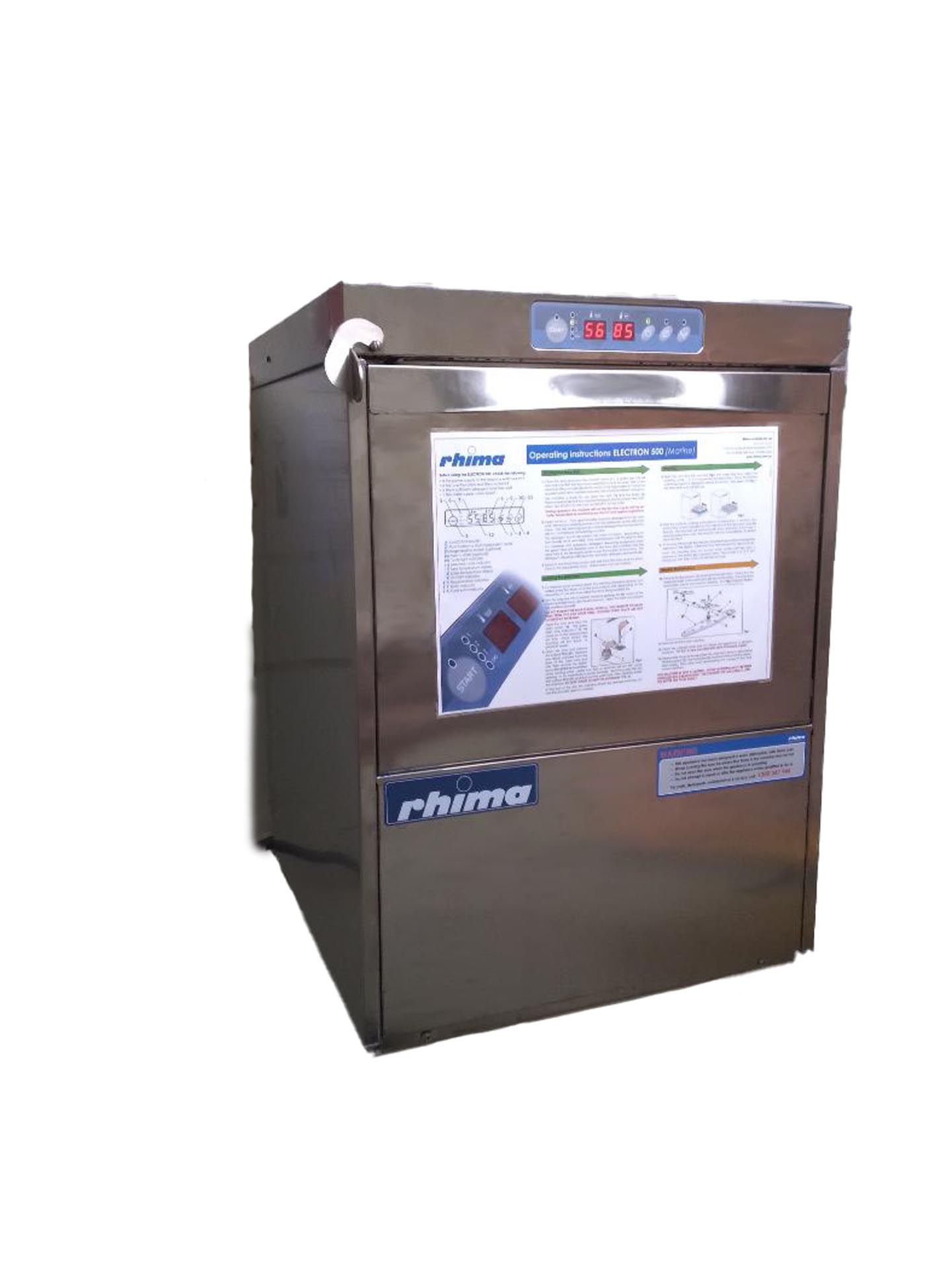

- Lockable doors – to prevent unwanted opening during sailing

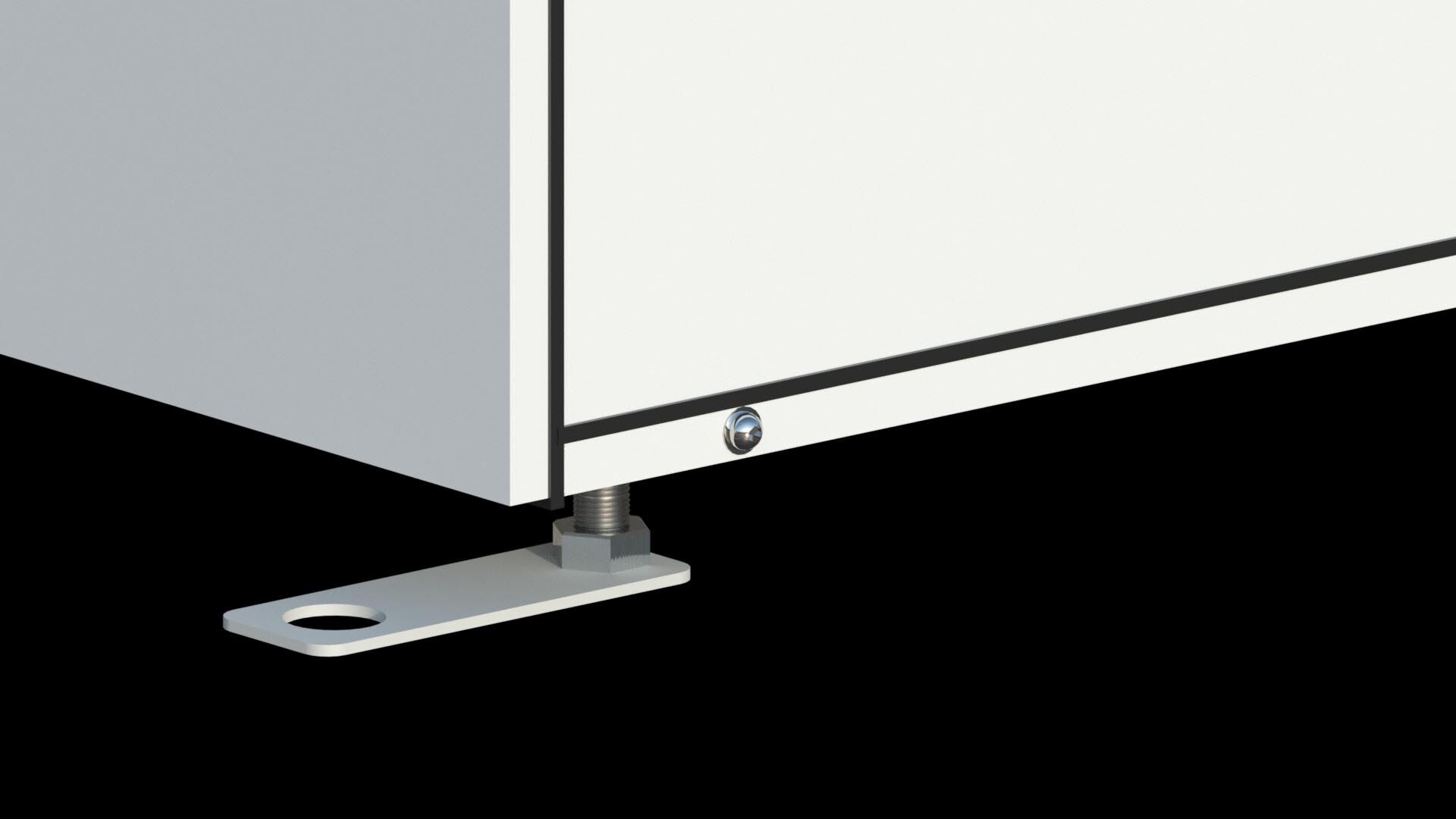

- Bolted feet – Rhima supply special custom built feet that can be bolted to the floor and prevent movement of the dishwasher
- No neutral
- 60Hz pumps – to match the power supply on board
- Self cleaning system
- Easy to use soft touch panel that shows temperature and alarm errors
- Thermostop safety system that ensures the machine has reached the correct temperatures before completing the cycle in order to comply with HACCP guidelines
- Built in drain pump to ensure automatic draining of machine
- Built in detergent and rinse aid pump which means that the chemicals connected to the machine are automatically dosed and injected
- Easy to remove nozzles and filter for cleaning
- Back flow prevention valve that stops the dirty water from leaking back into the clean wash water
Specs
- Power supply 400V 60Hz
- Total power 5.15 kW
- Total current 15 amp
- Wash tank capacity 16.5 ltr
- Rinse water consumption (per cycle) 2.3 ltr
- Rinsing temp (approx) 85 °C
- Rack size 500 x 500 mm
- Tallest washable glass 32.5cm
- Weight (empty) 63.5kg
- Water connection 3/4" hose
